Stainless Steel Elbow ASTM A182 Threaded Pipe Fittings

  • 1
  • 2
  • 3

Brand Name : ZZ

Model Number : 1/8''-4''

Certification : API/CE/ISO/TUV/ABS

Place of Origin : CHINA

MOQ : 1 Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 PCS / Month

Delivery Time : 7 working days or negotiation

Packaging Details : Carton & Wooden Cases, or as per customer demand

Material : SS304, SS316, SS321, SS310, SS317

Shape : Straight and Reducer

Connection : NPT, BSPP, BSPT

Technics : Forged,Advanced

Standard : DIN,ANSI,ASTM,GB

Working pressure : PN12.5-PN25,PN25,PN16

Contact Now

316 Stainless steel threaded pipe fittings are manufactured by forging and machining solid steel and are available in a multitude of shapes like elbow, tee, cross, union, cap,coupling. There are many types of elbows that are 90 & 45 degree, straight & reducing elbow, F/Female & F/Male thread. They are also belong to high pressure pipe fittings because their pressure ratings are 2000lb, 3000lb, 6000lb.

Threaded pipe fittings are used only in conjunction with ASME Pipe and are available in the same size range. And where pipe-work is permanent and are designed to provide good flow characteristics. And suitable in small bore pipes and piping system.

Markings on Stainless Steel Elbow

  • Size
  • Degree
  • Pressure / Schedule
  • Material Grade
  • Standard
  • Heat Number
  • Customer Logo

Specification of SS316 Threaded Elbow

Speficiation

ASTM A182 / SA182, ASTM / ASME B16.11

Size Range

 1/8" to 4" in Class 2000lb, 3000lb, 6000lb

Type

Straight Elbow, Reducing Elbow, 90 Degree & 45 Degree Elbow, Female Elbow, Female & Male Elbow
Grades ASTM A182 F304/304L/304H, F316/316L/316H, F321/321H, F347/347H, F310/310S
Thread Type NPT, PT, BSPP, BSPT

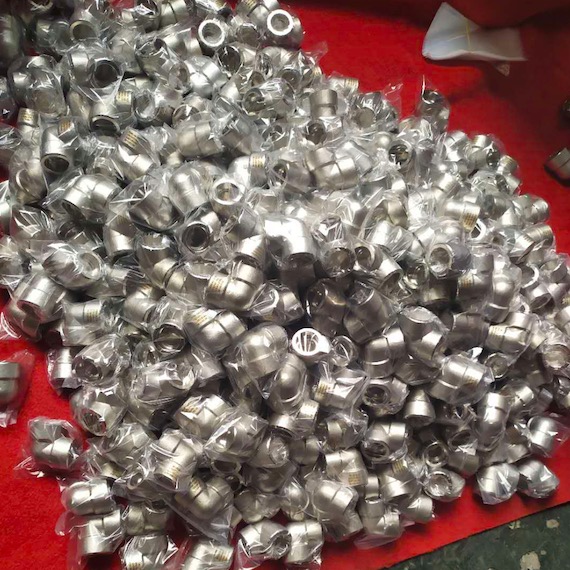

Stainless Steel Elbow ASTM A182 Threaded Pipe Fittings

Standard for Stainless Steel Threaded Elbow

ASME B16.11

This Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and Threaded Forged Fittings.

ASTM A182 / A182M

Standard Specification for Forged Fittings, and Parts for High-Temperature Service

ASTM A182 Stainless Steel Chemical Composition

Grade C Si Mn P S Cr Ni Mo
F304 0.08 1.0 2.0 0.045 0.03 18 - 20 8.0 - 11.0 -
F304H 0.04 - 0.1 1.0 2.0 0.045 0.03 18 - 20 8.0 - 11.0 -
F304L 0.03 1.0 2.0 0.045 0.03 18 - 20 8.0 - 13.0 -
F316 0.08 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
F316H 0.04 - 0.1 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 14.0 2.0 - 3.0
F316L 0.03 1.0 2.0 0.045 0.03 16.0 - 18.0 10.0 - 15.0 2.0 - 3.0
F321 0.08 1.0 2.0 0.045 0.03 17.0 - 19.0 9.0 - 12.0 -
F321H 0.04 - 0.1 1.0 2.0 0.045 0.03 17.0 - 19.0 9.0 - 12.0 -
F347 0.08 1.0 2.0 0.045 0.03 17.0 - 20.0 9.0 - 13.0 -
F347H 0.04 - 0.1 1.0 2.0 0.045 0.03 17.0 - 20.0 9.0 - 13.0 -

ASTM A182 Stainless Steel Mechnical Properties

Grade Tensile Strength (Mpa) Yield Tensile (Mpa) Elongation (%) Hardness (HB)
F304 515 205 30 -
F304H 515 205 30 -
F304L 485 170 30 -
F316 515 205 30 -
F316H 515 205 30 -
F316L 485 170 30 -
F321 515 205 30 -
F321H 515 205 30 -
F347 515 205 30 -
F347H 515 205 30 -

Stainless Steel Pipe Fittings Features

  1. Corrosion Resistant
  2. Hgh Pressure
  3. High Temperature
  4. Rust Proof Finish
  5. Smooth & Pretty
  6. Excellent Stress
